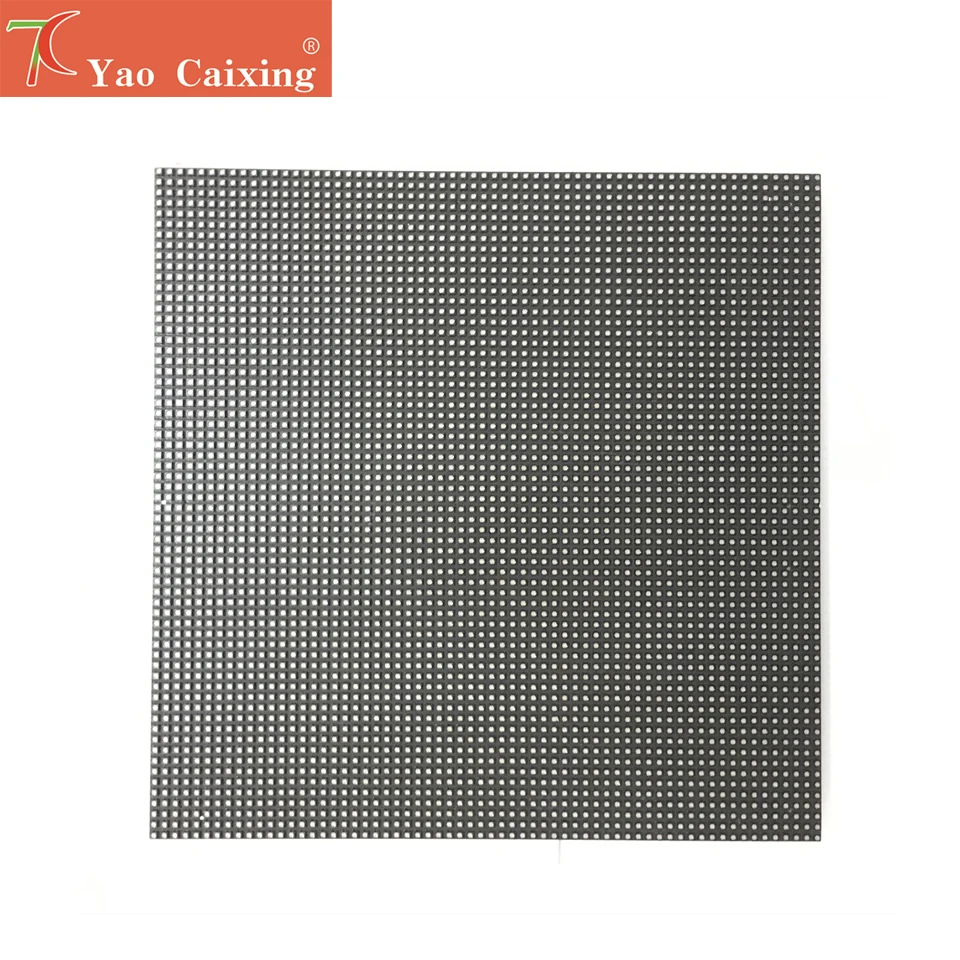

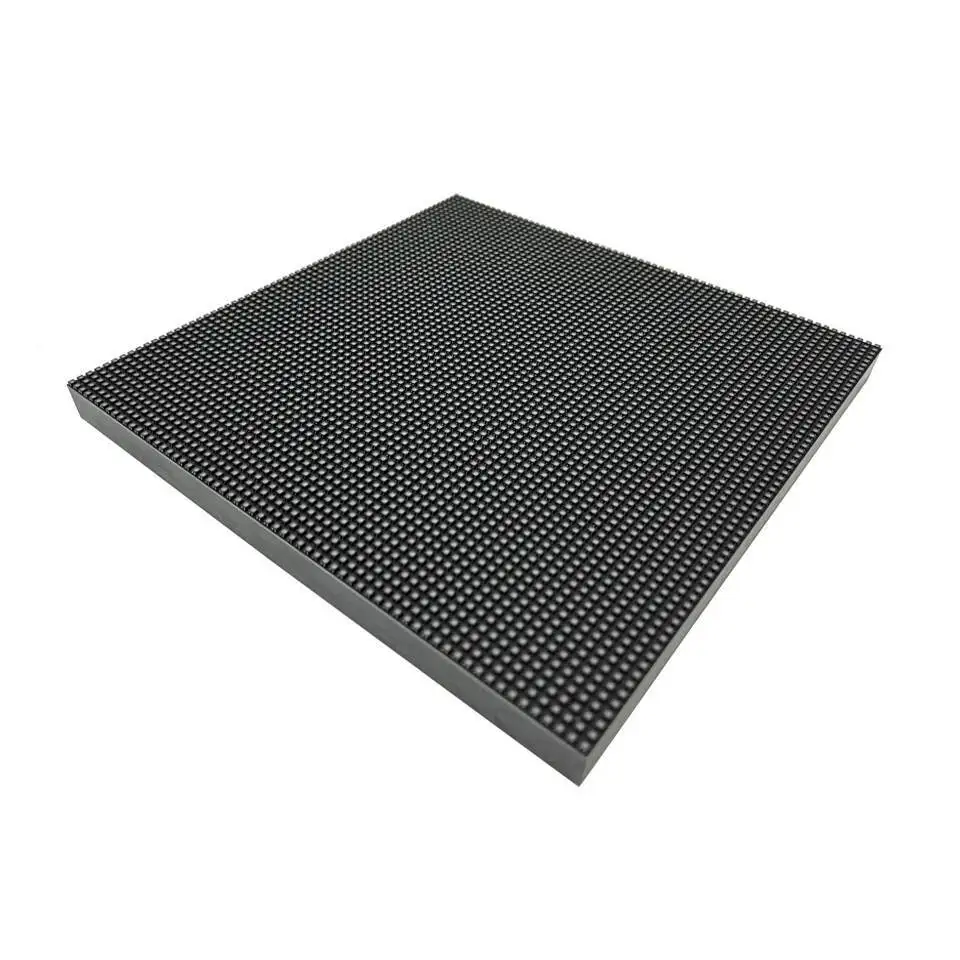

Módulo RGB P3 para interiores DIY, 192*192 mm, píxel 64*64, HUB75, compatible con Raspberry Pi, pantalla de matriz de puntos SMD

Informática

Módulo RGB P3 para interiores DIY, 192192 mm, píxel 6464, HUB75, compatible con Raspberry Pi, pantalla de matriz de puntos SMD

Name: Módulo RGB P3 para interiores DIY, 192*192 mm, píxel 64*64, HUB75, compatible con Raspberry Pi, pantalla de matriz de puntos SMD
SKU: AE-1005007531631866
Price: 29.63 EUR
Availability: InStock

29,63 €

En stock · 49 disponibles

Seguir comprando

Descripción del producto

Welcome to YaoCaixing Electronic store!

Specification

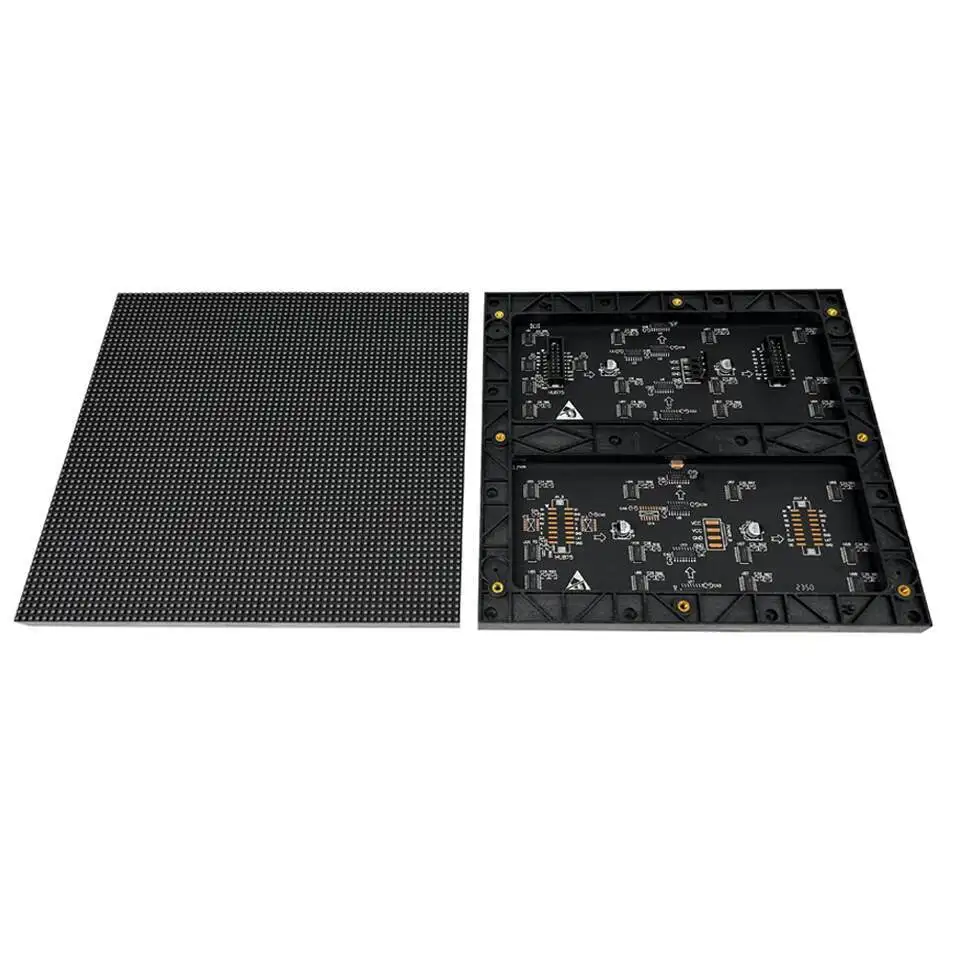

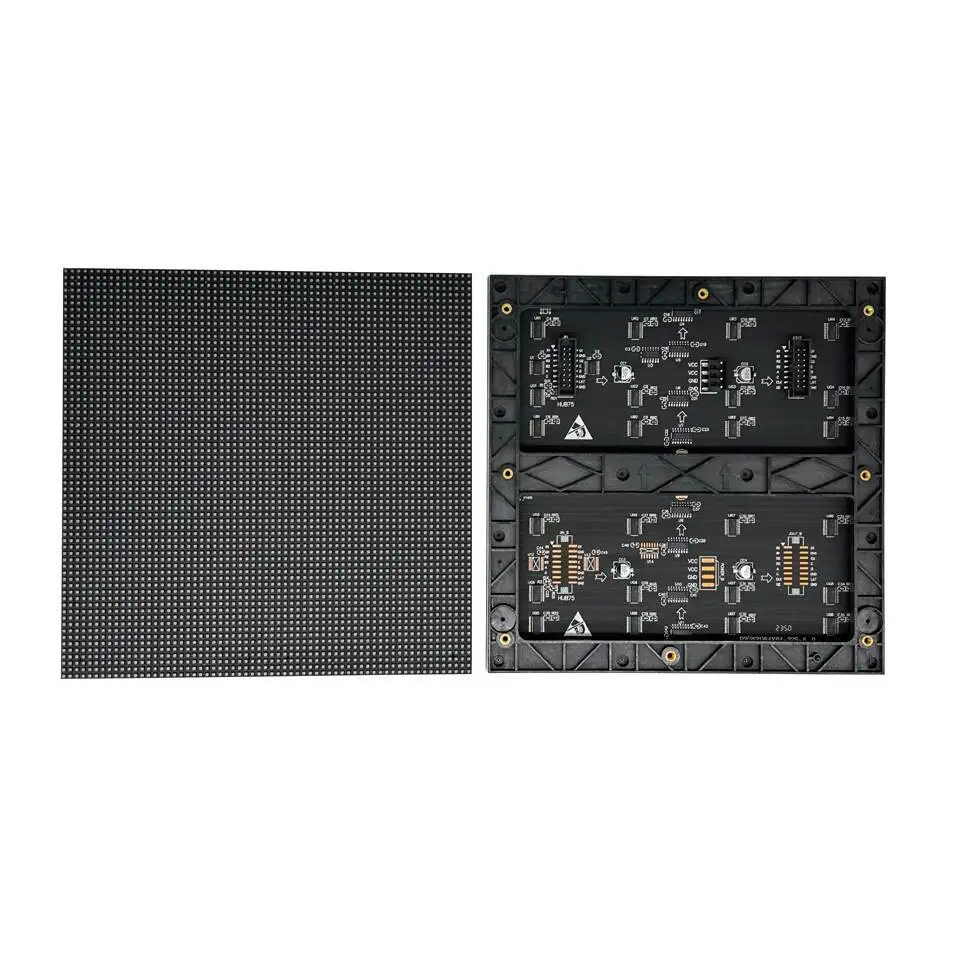

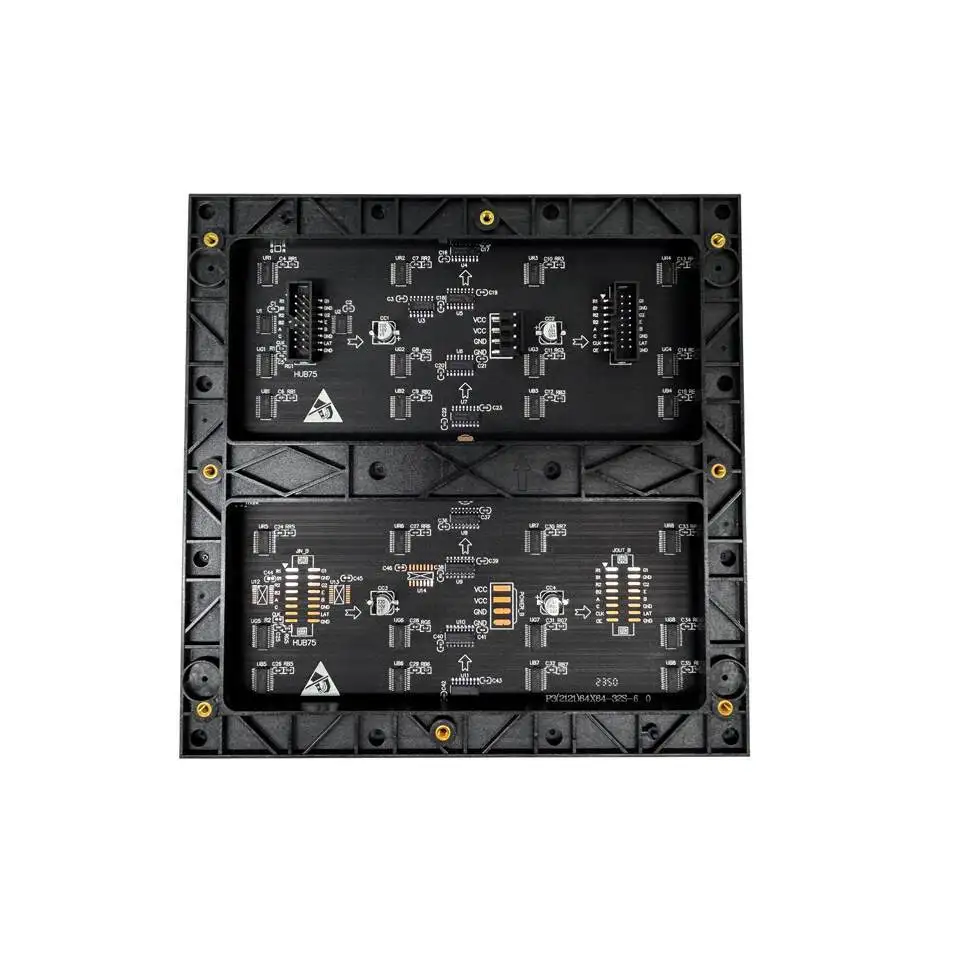

Module Back View
Resolution	64(H)×64(W)
Pitch	3mm
Density	111.111 pixels/m²
LED Arrangement	SMD2121
Driver Mode	32scan(constant current drive)
Size	192mm×192mm
Mask	No mask
Electricity Parameter
Optical Ratings
Brightness	≥600cd/m²
View Angle	140 degree ( horizontal) 140degree(vertical)
View Distance	2m-200m
Gray Scale	8bits input, correction with 16bits
Display Color	16.7M
Brightness Adjustment	100 levels
Power Supply
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	800 w/m²
Average Power Consumption	300 w/m²
Control System
Correction Scale Level	16bits
Frame Update Frequency	60Hz
Screen Refresh Frequency	1920Hz
Gamma Correction	-5.0—5.0
Support Input	Composite Video, S-Video, DVI, HDMI.
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	1024×768,1280×1024,1600×1200,1920×1080
Color Temperature	5000-9300 adjustable
Brightness Correction	dot by dot, module by module
Reliability
Operating Temp.	-20℃ - +60℃ Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥72hours
Protection Level	IP20
Out of Control Pixel Rate	0.01%

Pictures

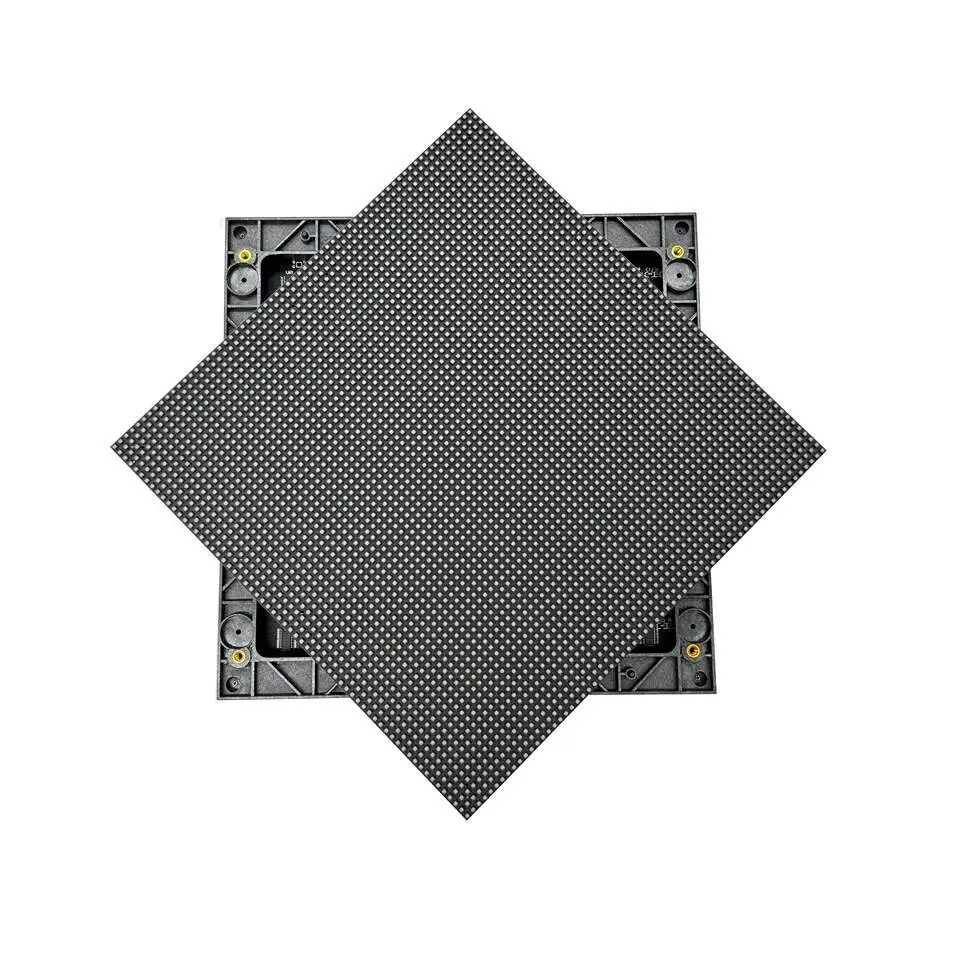

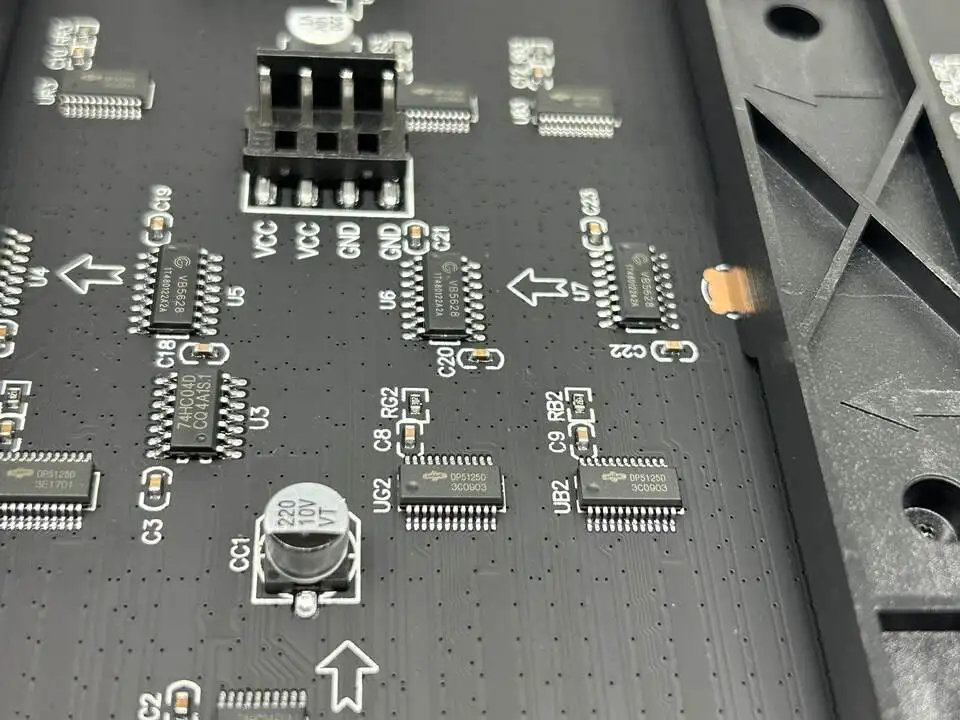

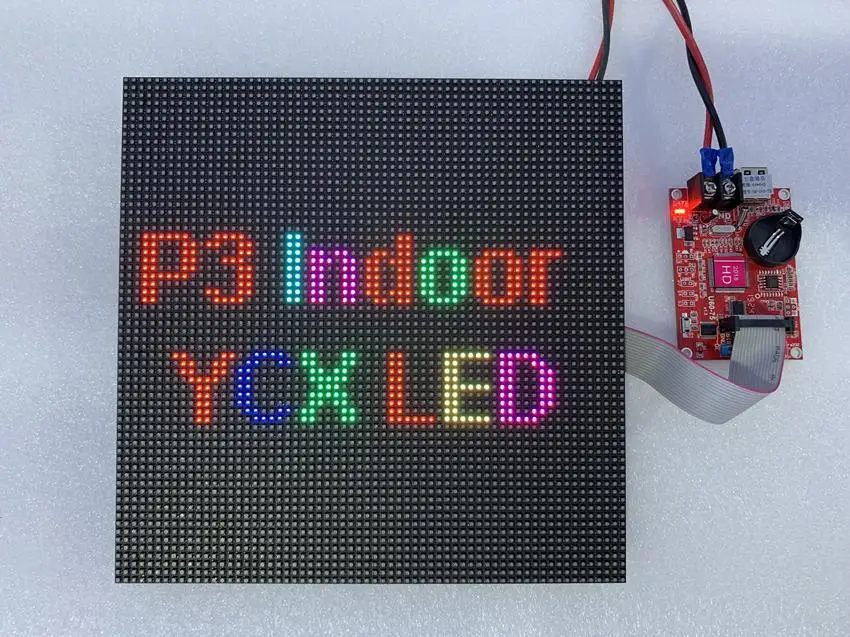

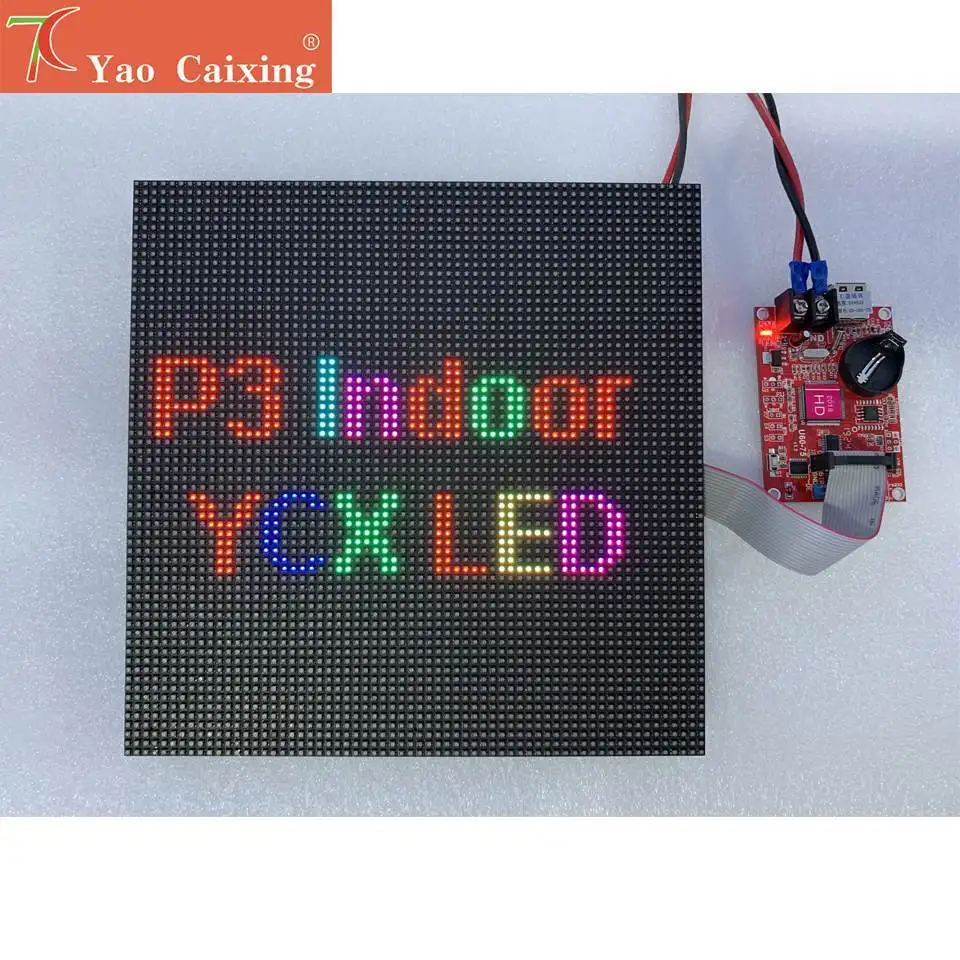

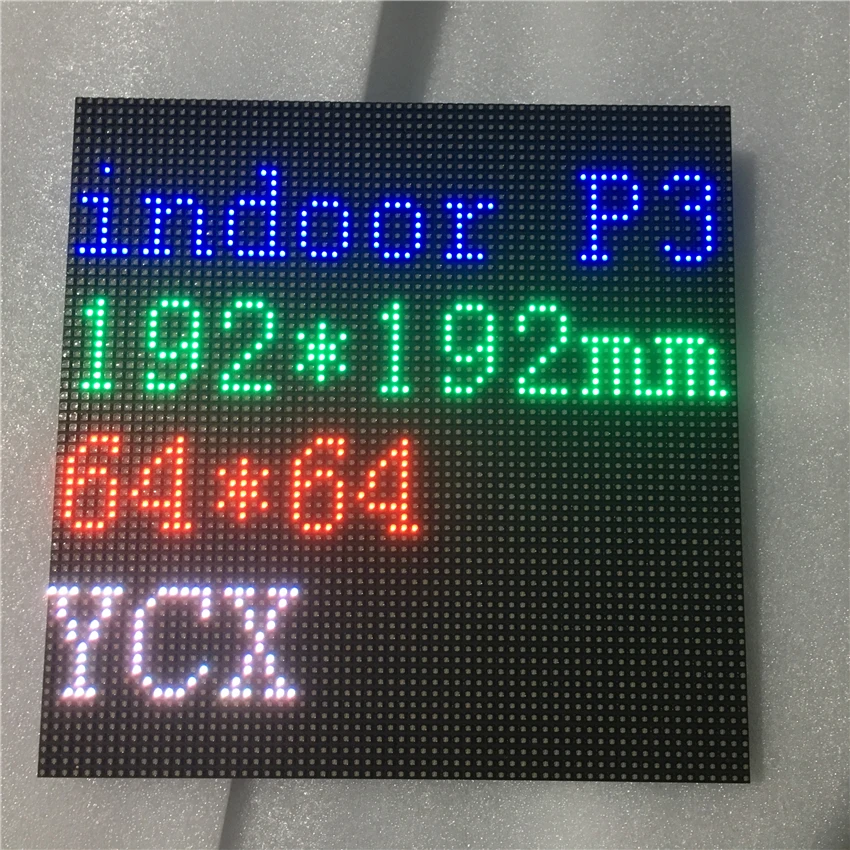

Module details

About Us

Shenzhen Yao Caixing Electronic Co.,LTD is founded in 2010 which locate in the world LED display manufacturing center-Shenzhen, China.

The cover area is about 20000square meters,nearly 400 employees.

We are specialized in the development,production,sales and services of the LED display and focus on providing customers with a full range of product solutions.It is a integrated operation service private enterprise in photoelectric LED display filed.

Several years of study and unremitting efforts,company gathered a large number of talents and has accumulated rich experience.Owned the firstclass automated production equipment and standard production workship.Also established a systematic and professional display screen productionprocess and provide a powerful guarantee for the quanlity of the LED display to improve the the stability and product cost performance.

Main products:Inside or outside SMD full color modules/panels and cabinet display.

Our main production:P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P4.81,P5,P6,P7.62,P10 indoor;

P3.91,P4,P4.81,P5,P6,P6.67,PH8,P10,P16 outdoor full color.

Hope you love and choose us ,thanks for your surpport

We'll try to do better and better in the future.

Have a nice day !!!

Especificaciones

Nombre de la marca: Yao Cai Xing
Producto químico de alta preocupación: Ninguno
Origen: CN(Origen)
Color del Chip del Tubo: A TODO COLOR
Número de modelo: P3
es personalizado: Sí
usar: dentro de casa
Función de Visualización: vídeo
Píxeles: 3mm
LED Lamps: SMD2121
Module Power: 32W

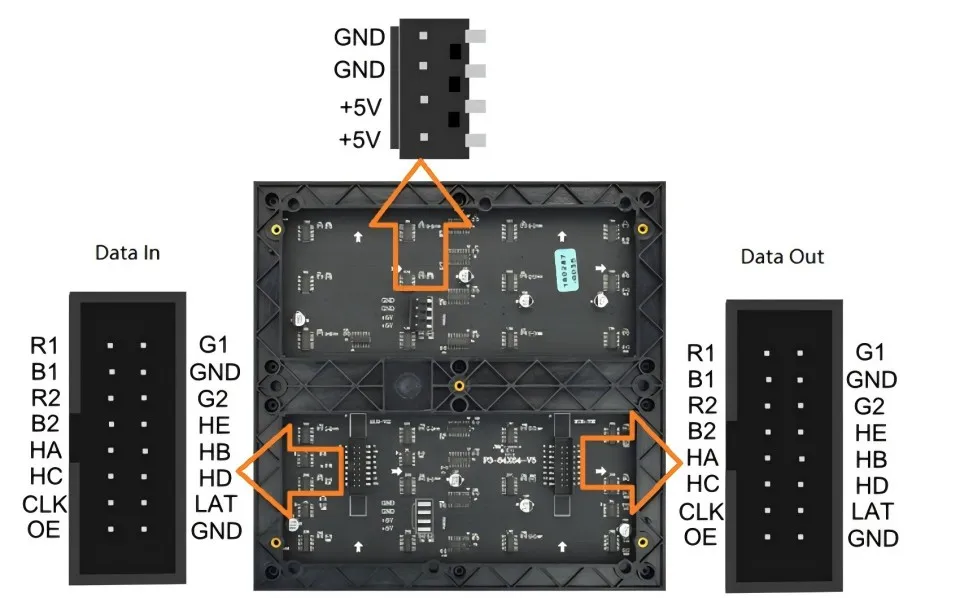

Interface Way: HUB-75
Module Resolution: 64*64
Module Size: 192*192mm
Dot/sqm: 111.111
Module Weight: 0.38kg
Input Voltage: 5V
Is Waterpoof: No
