Features:
Ultra-small size, low insertion loss, excellent selectivity, high out-of-band rejection, high power processing
Applications:
390 ~ 470 MHz (433.92MHz, 435MHz) graphics receivers dedicated to laboratory and other highly selective applications

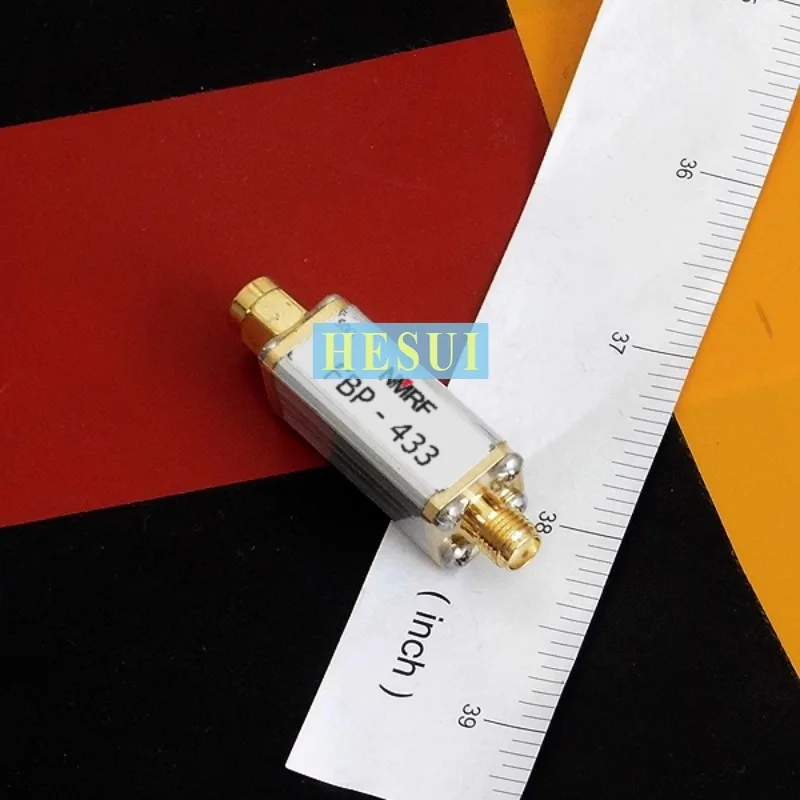

Model: FBP-433
Impedance: 50 Ohms
Center frequency: 433 MHz
Center frequency insertion loss: <= 3.5dB@433 MHz
3 dB bandwidth: 390 to 470 MHz
30 dB bandwidth: 350 to 560 MHz
Greater than 50 dB stopband: DC ~ 250 MHz & 1100 ~ 2500 MHz
Maximum load power: 10 W (40 dBm)
Interface: SMA-M, SMA-F

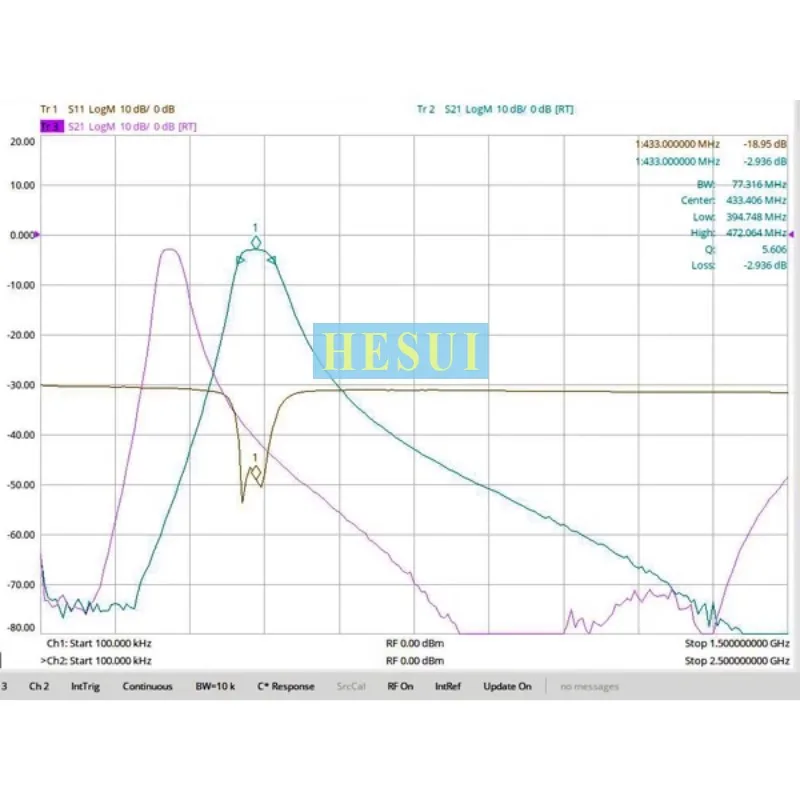

Frequency response chart (Scan range: 0.1-1500MHz. The blue-green line is S21, and the vertical scale is 10dB per cell. The tan line is S11, and the vertical scale is 10dB per cell. The diagram is labeled as 3dB bandwidth) :
Circuit pattern diagram (Note: both ports are ground DC short circuit, need to pay attention to the application) :

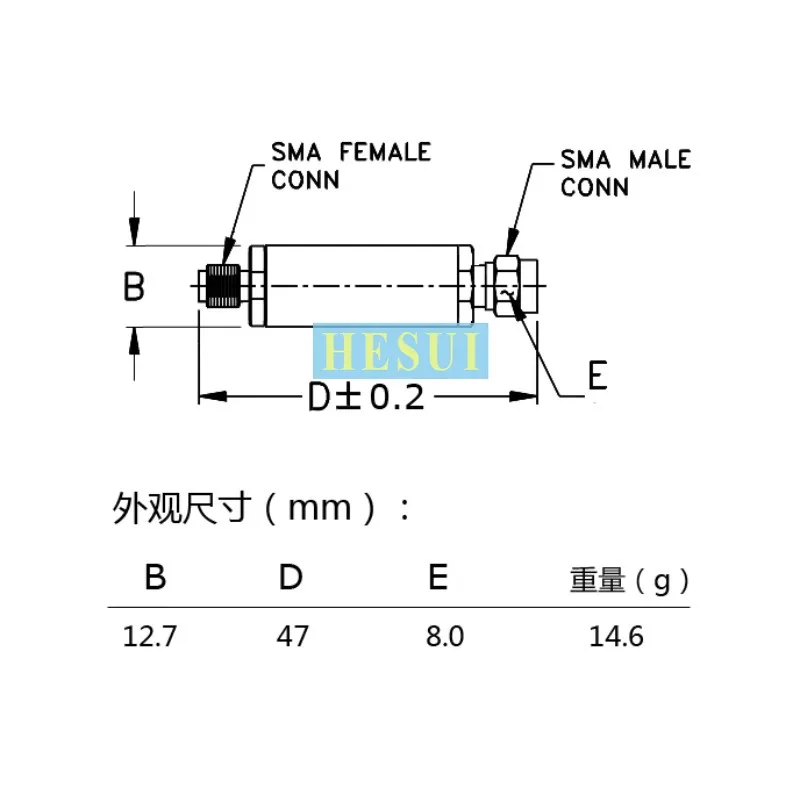

Appearance size:
